Basic Info.
Model NO.
EL12
Specification
25kg, 50kg, 200kg, 250kg
Trademark
OEM
Origin
China
HS Code
8311100000
Production Capacity
1800 Tons Per Month
Product Description

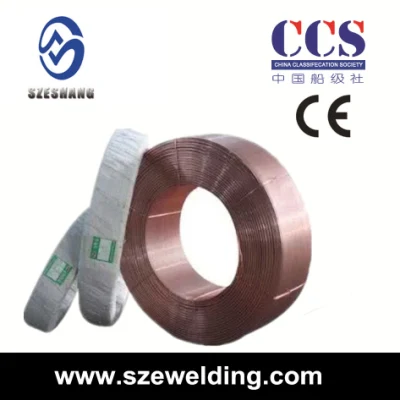

Submerged Arc Welding Wire EL12, EM12K, EM12
1. Description:
1)The weld metal shows a Fine appearance.
2) Both AC and DC can be applied.
3)Stable Arc
4)Easily removable residue
The products easily removable residue, good seam forming and highly efficient deposiyion. Wire meltingdoes not lead to splash or strong flasing. The sem surface is smooth and welding quality is guaranteed. They facilitate mechanical and automatic welding process. With a wide range of welding parameters, the wires can be used in open fields with strong wind and applied to automobiles, ships, bridges and chemical engineering.
Main Applications:
It is suitable to weld 450Mpa-500Mpa grade structures, such as boilers, ships, bridges, pressure vessels, as well as LPG cylinders, Before welding, the base metal must clear away impurities and fht flux must be baked in a temperature of 300° C-350° C for 1-2 hours.
Our Factory and Production Line:

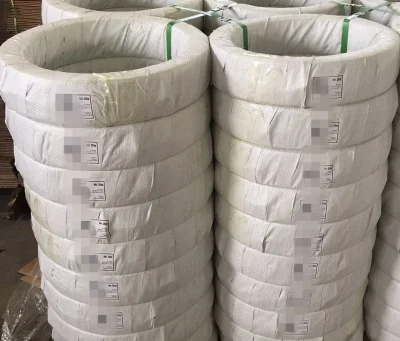

The package of Submerged Arc Welding Wire:more than 250kg / pallet
We assist in Beijing Essen Welding&Cutting Fair each year.
FAQ
Q1: Can I have a sample for testing?
A: Yes, we can support free sample
Q2: Can I add my logo on the boxes/cartons?
A: Yes, OEM and ODM are available from us.
Q 3: What are the benefits of being a distributor?
A: Special discount Marketing protection
Q4: Do you have inspection procedures for welding wires?
A: 100% self-inspection before packing. We provide Quality Certification for every order.
Q5: Can we mix itmes in one 20FT container?
A: Yes
Q6: Can I have a visit to your factory before the order?
A: Sure, welcome your visit of factory.
1. Description:
1)The weld metal shows a Fine appearance.
2) Both AC and DC can be applied.
3)Stable Arc
4)Easily removable residue
The products easily removable residue, good seam forming and highly efficient deposiyion. Wire meltingdoes not lead to splash or strong flasing. The sem surface is smooth and welding quality is guaranteed. They facilitate mechanical and automatic welding process. With a wide range of welding parameters, the wires can be used in open fields with strong wind and applied to automobiles, ships, bridges and chemical engineering.
Main Applications:
It is suitable to weld 450Mpa-500Mpa grade structures, such as boilers, ships, bridges, pressure vessels, as well as LPG cylinders, Before welding, the base metal must clear away impurities and fht flux must be baked in a temperature of 300° C-350° C for 1-2 hours.
| Mechanical Property | ||||||
| Joint Strength (MPA)δ | succumb strength (MPA) δ 0.2 | elongation index δ 5% | shock value Akv -20 (J) | |||
| 560 | 480 | 30 | 105 | |||
| Chemical Composition | ||||||
| C | Mn | Si | S | P | Other | |
| 0.07% | 0.95% | 0.03% | 0.010% | 0.012% | ≤ 0.50 | |
| Procedure& Package | ||||||
| Dia | 2.0mm | 2.5mm | 3.0mm | 3.2mm | 4.0mm | 5.0mm |
| Current | 300-400 | 350-450 | 400-500 | 425-525 | 475-575 | 550-650 |
| Voltage | 26-29 | 27-30 | 27-30 | 27-30 | 27-30 | 27-30 |
| Weight/spool(KG) | 25 | 25 | 25 | 25 | 25 | 25 |
Our Factory and Production Line:
The package of Submerged Arc Welding Wire:more than 250kg / pallet
We assist in Beijing Essen Welding&Cutting Fair each year.
FAQ
Q1: Can I have a sample for testing?
A: Yes, we can support free sample
Q2: Can I add my logo on the boxes/cartons?
A: Yes, OEM and ODM are available from us.
Q 3: What are the benefits of being a distributor?
A: Special discount Marketing protection
Q4: Do you have inspection procedures for welding wires?
A: 100% self-inspection before packing. We provide Quality Certification for every order.
Q5: Can we mix itmes in one 20FT container?
A: Yes
Q6: Can I have a visit to your factory before the order?
A: Sure, welcome your visit of factory.
