10/16/25mm2 Rubber Insulation Copper Conductor Welding Cable Household Power Cable Electrical Wire

Get top-quality 10/16/25mm2 Rubber Insulation Copper Conductor Welding Cable, Household Power Cable and Electrical Wire direct from the factory. Shop now for reliable electrical products.
Request a Quote

PRODUCTS DETAILS

  • Overview
  • Product Description
  • Product Parameters
  • TESTING
  • Certifications
  • Packaging & Shipping
  • Customer Visit
  • Company Profile
  • FAQ
Overview

Basic Info.

Model NO.
Welding Cable Power Cable
Material Shape
Round Wire
Range of Application
Overhead
Certification
ISO9001, CE, SGS TUV
Brand
Ume
Third Party Inspection
Accepted
Sample
Free
Color
Customer Specified
OEM
Accepted
Transport Package
Drum
Specification
Welding Cable Power Cable
Trademark
UME
Origin
China
HS Code
8544492100
Production Capacity
500, 000km Per Month

Product Description

Product Description

ONE-STOP SOLUTIONS FOR WIRES&CABLES - HENAN UME CABLE CO., LTD
Over 30 years of Wires and Cables manufacture experience and Export to over 50 countries.

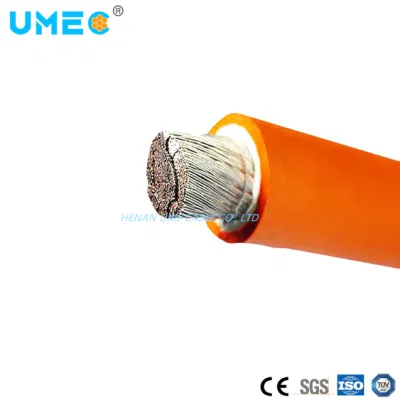

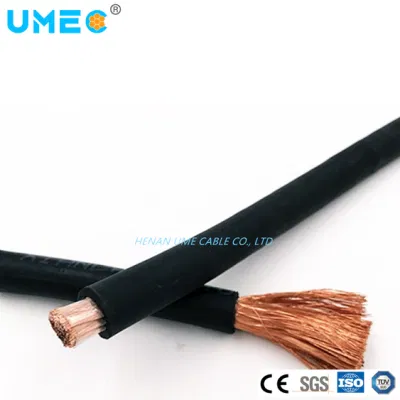

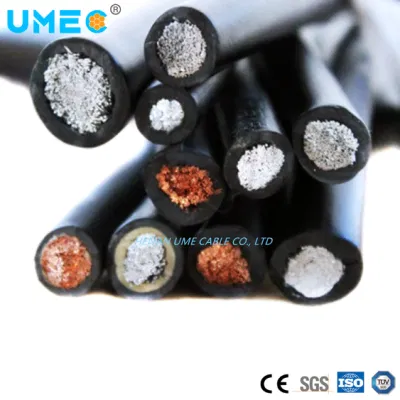

10/16/25mm2 Rubber Insulation Copper Conductor Welding Cable Household Power Cable Electrical Wire
10/16/25mm2 Rubber Insulation Copper Conductor Welding Cable Household Power Cable Electrical Wire

1. Application

These cables are used for connecting the electrodes to the welding equipment,charger machine. These cables are suitable for welding equipment,charger machine in industry , in automated welding equipment, in tooling constructions, automobile and shipbuilding as well as for hand-held electrodes in workshops and at building sites.
These flexible and robust current-carrying cables are suitable for use at high mechanical loads in dry indoors.

2. Working Condition

Conductor : Flexible bare annealed copper wire or tinned copper wire
Insulation: PVC or Rubber Material or EPR
Sheath: PVC or Rubber Material or CSP
No.Cross-section 10mm2-185mm2
Choice of Black, Orange, Red or Yellow Blue jacket, single & double insulated.

3. Standard

Welding Cable

Product Parameters
Welding Cable
Welding Cable
Conductor Nominal Section
(mm2)
Conductive Core
Number/Dia. of Core
(mm)
Thickness of Section
Sheath
(mm)
Average Outer Dia.
(mm2)
DC Resistance of conductor
at 20ºC
(Ω/km)
Min Max Tinned conductor Non-tinned conductor
10 322/0.20 1.8 7.5 9.7 1.95 1.91
16 513/0.20 2.0 9.2 11.5 1.24 1.21
25 798/0.20 2.0 10.5 13.0 0.795 0.78
35 1121/0.20 2.0 11.5 14.5 0.565 0.554
50 1596/0.20 2.2 13.5 17.0 0.393 0.386
70 2214/0.20 2.4 15.0 19.5 0.277 0.272
95 2997/0.20 2.6 17.0 22.0 0.210 0.206
120 1702/0.30 2.8 19.0 24.0 0.164 0.161
150 2135/0.30 3.0 21.0 27.0 0.132 0.129
185 1443/0.40 3.2 22.0 29.0 0.108 0.106
TESTING



HENAN UME CABLE CO., LTD has a strict quality control policy in every step from the order to After-sales service!



     Production:

  • Raw material inspection and test
  • Production process test
  • Unqualified product control
  • Regular test and examination
  • Finished product inspection
10/16/25mm2 Rubber Insulation Copper Conductor Welding Cable Household Power Cable Electrical Wire



Certifications
UME CABLE has completed several third-party product certifications to ensure our customers that all of the wire and cable purchased and installed in your projects, will fully and consistently meet all criteria of the required production and performance standards, also you are guaranteed we (as the manufacturer) and the products supplied are both valid and continuously monitored by those globally recognized quality verification system listed as below: ISO9001, ISO14001, ISO45001, CE, SGS, TUV.
10/16/25mm2 Rubber Insulation Copper Conductor Welding Cable Household Power Cable Electrical Wire

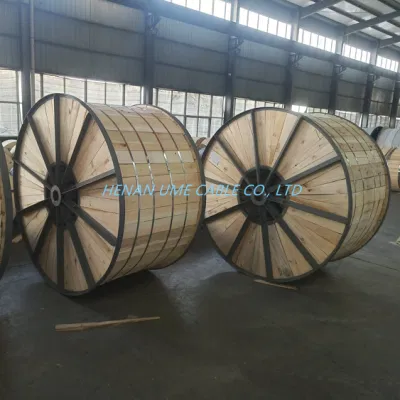

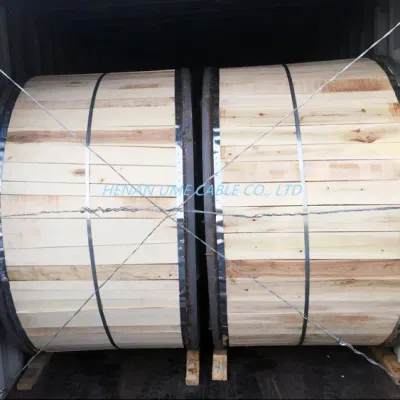

Packaging & Shipping



10/16/25mm2 Rubber Insulation Copper Conductor Welding Cable Household Power Cable Electrical Wire
10/16/25mm2 Rubber Insulation Copper Conductor Welding Cable Household Power Cable Electrical Wire

Customer Visit

10/16/25mm2 Rubber Insulation Copper Conductor Welding Cable Household Power Cable Electrical Wire

Company Profile
10/16/25mm2 Rubber Insulation Copper Conductor Welding Cable Household Power Cable Electrical Wire
UME CABLE is one of the leading companies in the production and distribution of cables and wires in China. As a manufacturer, we have supplied quality products to more than 50 countries. Our mission is to offer our customers the best quality cable and wire products at the most competitive price, to extend and zoom the business success of our partners, to make power reach where it is needed, to optimize the running utility grids, and ultimately, to power the world. Our version is to be the most customer-centric cable and wire company with our solid technology, enthusiastic services, and robust products.

UME Cable was founded in 1994, located in Zhengzhou Gongyi Huiguo Town, and occupies a total area of more than 200,000 square meters, with a building area of 20,000 square meters. The real capital assets are more than USD 6 million, with a total of 230 staff members, 35 of which are professional and technical experts. The land of our factory and employees numbers might not be the top scale of industry, but our highly automatic facilities and elite employees are the best in the industry will guarantee you a high yield rate achieved by strict cost and quality control, this is why we could quote better quality with the most competitive price within the market.



FAQ

Q1: Are you a manufacturer?
Yes, we are the manufacturer.

Q2: What are your main products?
  Our products range as follows:
1. Electrical wire/PVC Building Wires.
2. PVC/XLPE insulated Power Cables up to 110kv.
3. Overhead Aerial Bundle Cable/ABC Cables.
4. Bare Conductors, like AAC, AAAC, ACSR, ACAR, ASCR/AW, and so on.
5. Steel wire/strand-like EHS, GSW and ACS(Aluminum Clad Steel), CCS(Copper Clad Steel).
6. Rubber Cables, Mining Cables, Welding Cable, and Control Cables.
7. Concentric Cables with Copper/Aluminum/Aluminum Alloy 8000s' Conductor.

Q3: Do you provide samples? Is it free or extra?
  Yes, we could offer the samples for free

Q4: Is the quality of your products guaranteed?
  We have passed ISO9001, ISO14001, ISO45001, and all our products have CE certificates.

Q5: Which markets do you involve mainly in?
Our products have been exported mainly to Africa, the Middle East, Southeast Asia, South America, Central America, North America, Europe, Australia, etc.

Q6: What is your payment term?
  T/T or L/C

Q7: What about the delivery time?
Generally, it is 3-7days if the goods are in stock. Or it is 7-30days if the goods are not in stock, it is according to quantity.
