Basic Info.
Model NO.
Ni95Al5
Condition
Bright,Soft
Common Size
1.6mm,2.0mm
Brand
Ualloy
Spool
DIN300
Weight Per Spool
15kgs
Transport Package
Be Packed Into Plywood Pallet or Wooden Case
Trademark
Ualloy
Origin
Hangzhou, China
HS Code
75052200
Production Capacity
50 Tons/Month
Product Description
Low price Nickel Alloy wire Ni95Al5/NiAl 955/Tafa 75B thermal spray wire
(Common name:NiAl 95-5, Nickel Aluminum 95/5,N9,Ni95Al5,95/5 Nickel Aluminum,F-80NA Nickel Aluminium 95/5)
This alloy is a nickel aluminium alloy characterized by dense coating,high temperature oxidation resistance, heat shock resistance and scratch resistance.This wire has stable chemical composition, low oxgen and high bonding strength.
Typical applications for NiAl 95/5 are widely used in arc and flange flame spray systems, Coatings to resist heat and prevent scaling of conventional low alloy steels,Bond coats for improving the adhesion of top coatings,Coatings on moulds in the glass industry.
Normal composition%
(Common name:NiAl 95-5, Nickel Aluminum 95/5,N9,Ni95Al5,95/5 Nickel Aluminum,F-80NA Nickel Aluminium 95/5)
This alloy is a nickel aluminium alloy characterized by dense coating,high temperature oxidation resistance, heat shock resistance and scratch resistance.This wire has stable chemical composition, low oxgen and high bonding strength.
Typical applications for NiAl 95/5 are widely used in arc and flange flame spray systems, Coatings to resist heat and prevent scaling of conventional low alloy steels,Bond coats for improving the adhesion of top coatings,Coatings on moulds in the glass industry.
Normal composition%
| Al | Mn | Fe | Ni | Si | Cu | C | Ti |
| 4.5-5.5 | Max 0.3 | Max 0.3 | Bal. | Max 0.5 | Max 0.08 | Max 0.005 | Max 0.3 |
Typical Physical properties
| Density (g/cm3) | 8.2 |
| Electrical resistivity at 20ºC(mm2/m) | 0.42 |
Typical Deposit Characteristics
| Coating Harness | Coating Strength | Deposit Rate | Deposit Efficiency | Machilityineab |
| 23-25 HRC | 65-68Mpa | 10 lbs /hr/100A | 60-70% | Good |
| Specific heat capacity |
| Melting point (ºC) | 1010 |
| Max continuous operating temperature in air (ºC) | 800 |
| Magnetic properties | non-magnetic |
Style of supply

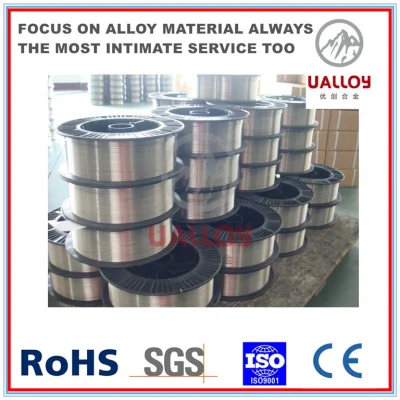

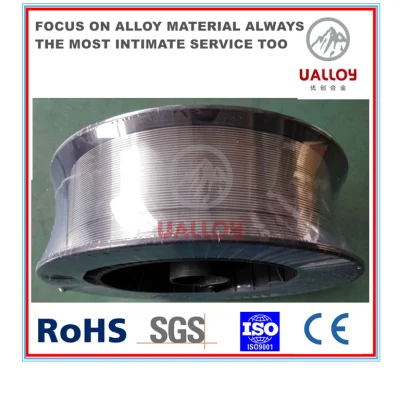

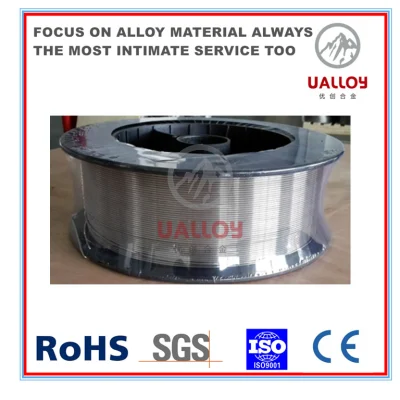

Wire:the common sizes are 1.6mm and 2.0mm,the spool size is DIN 300,and the weight per spool is about 10-15kgs.The other sizes are on the request of our customers.
Ualloy specialized in manufacturing heating resistance alloy for years,the main products cover
NiCr series- Cr20Ni80,Cr30Ni70,Cr15Ni60,Cr20Ni35,Cr20Ni30
FeCrAl series-1Cr13Al4,1Cr15Al5,0Cr21Al4,0Cr21Al6,0Cr23Al5,0Cr25Al5,0Cr21Al6Nb,0Cr27Al7Mo2 etc.
CuNi series-CuNi1,CuNi2,CuNi6,CuNi8,CuNi10,CuNi19,CuNi23,CuNi30,CuNi34,CuNi44.
