Product Description

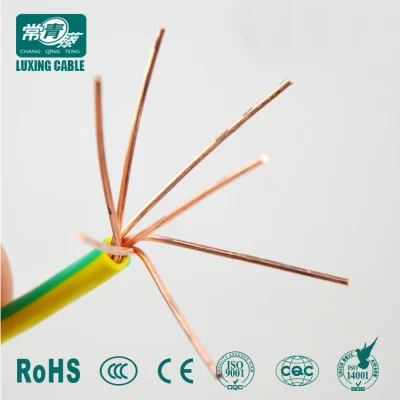

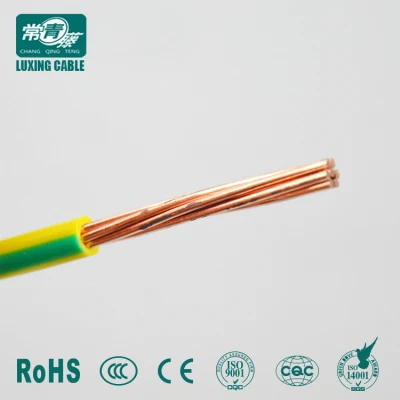

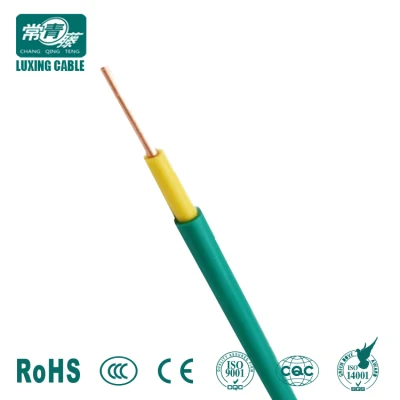

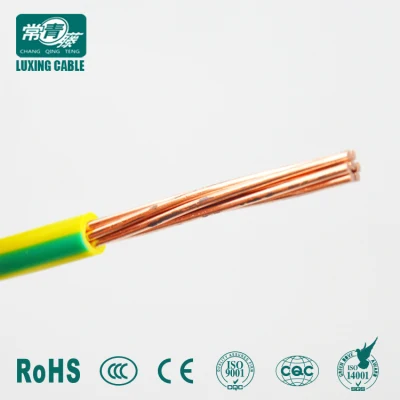

House appliances XLPE electrical wire
Technical Data:
Nominal Voltage: 300V
Temperature Range: 105°c
Testing Voltage: 3000v
Conductor: 30-10 AWG Bare Copper or Tinned Copper
Insulator: XLPE
Colours: White-Blue-Red-Black-Brown-Yellow-Green
Use: Inner fixed wires for Home electric Appliances, lightings, electronic equipment.
Certificate No.: E216252
Specification:
Conductor | Insulation | Resistance 20°c Ω/km | ||||
Spec AWG | Conductor construction No./φmm | Diameter (mm) | Nominal thickness (mm) | Nominal outer diameter (mm) | Max outer diameter (mm) | |
30 | 7/0.10 | 0.30 | 0.40 | 1.10 | 1.2 | 354.33 |
28 | 7/0.12 | 0.36 | 0.40 | 1.16 | 1.3 | 223.53 |
26 | 7/0.16 | 0.48 | 0.40 | 1.28 | 1.4 | 139.76 |
24 | 7/0.20 | 0.60 | 0.40 | 1.4 | 1.5 | 88.36 |
22 | 7/0.254 | 0.78 | 0.40 | 1.58 | 1.7 | 60.16 |
20 | 7/0.32 | 0.96 | 0.40 | 1.76 | 1.9 | 38.58 |
18 | 16/0.254 | 1.20 | 0.40 | 2.00 | 2.2 | 22.98 |
16 | 26/0.254 | 1.50 | 0.40 | 2.30 | 2.5 | 15.06 |
14 | 41/0.254 | 1.90 | 0.40 | 2.70 | 3.0 | 9.59 |
12 | 65/0.254 | 2.40 | 0.40 | 3.20 | 3.5 | 6.07 |
10 | 65/0.32 | 3.0 | 0.40 | 3.80 | 4.2 | 3.73 |
Products Show
Exhibition:
Certificates
Packaging & Shipping
All cable For exporting are well packed and protected by wooden drum or Wood and Steel Drum.The packing material is depended on the weight and size of cable.The good information, manufacture information, and the client's information is firmly printed on each size of drum.
After the well packed cable drums sent to Sea Port, they are loaded into 20 FT container or 40 FT container. All cable drum are firmly fixed by safety belt to make sure, no movement during the sea freight.
The size of the container is chosed according to weight of total loaded goods or as per the client's requirement.
