Basic Info.
Model NO.
welding cable
Material Shape
Round Wire
Range of Application
Welding Cable
Certification
ISO9001, CE, RoHS
Brand
Hanker
Cable
Welding Cable
Transport Package
100m/Drum
Specification
6-4/0awg
Trademark
HANKER
Origin
China
HS Code
8544492900
Production Capacity
60000m/Month
Product Description
0 3 5 8 Gauge Electric Welding Machine Cable Manufacturers China factory pure copper wire soft wire
APPLICATION:
Designed as secondary voltage resistance welding cable leads, Battery cables, Temporary power uses, Power supply applications not exceeding
600V AC.
CONSTRUCTION:

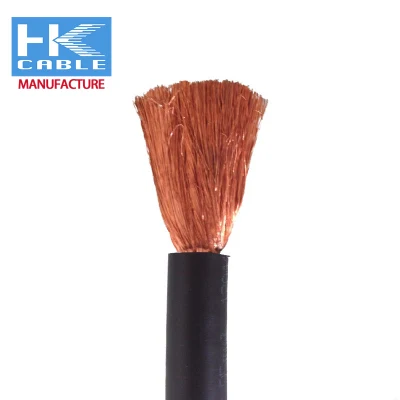

CONDUCTOR: 6 AWG- 4/0 AWG Stranded bare copper flexible, fully annealed, Class K, Bare-copper.
INSULATION: Chlorinated Polyethylene (CPE) Lead free

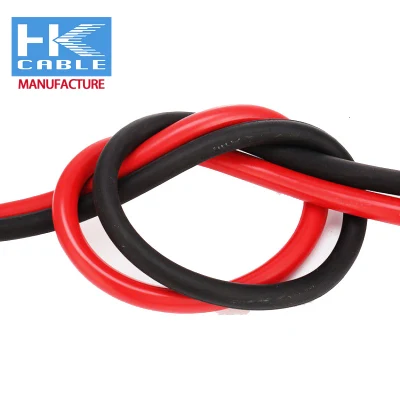

COLOR: Black RED
PHYSICAL PROPERTIES:
TEMPERATURE RANGE: -40°C to 90°C Dry, 90°C Wet
Oil and Water Resistant Non-Marking Jacket, Lightweight & Very Flexible at Low Temp.
ELECTRICAL PROPERTIES:
VOLTAGE RATING: 600V rms, Maximum
INDUSTRY APPROVALS: ASTM B-172, National Electrical Code 630, ROHS
| Conductor (AWG or kcmil) | Conductor Stranding (#/AWG) | Nominal Insulation Thickness (in) | Nominal Overall Diameter (in) | Weight per 1000 ft. (lbs) | Nom. DCR Ω/M' |
| 6 | 266/30 | 0.08 | 0.362 | 145 | 0.41 |
| 4 | 420/30 | 0.08 | 0.418 | 205 | 0.26 |
| 3 | 525/30 | 0.08 | 0.455 | 253 | 0.21 |
| 2 | 644/30 | 0.08 | 0.486 | 295 | 0.17 |
| 1 | 833/30 | 0.08 | 0.522 | 357 | 0.13 |
| 1/0 | 1026/30 | 0.09 | 0.582 | 456 | 0.11 |
| 2/0 | 1323/30 | 0.09 | 0.64 | 555 | 0.08 |
| 3/0 | 1666/30 | 0.09 | 0.674 | 650 | 0.06 |
| 4/0 | 2052/30 | 0.09 | 0.755 | 764 | 0.05 |
Founded in Feb 2010, Hai Yan Hanker Electronic Co.Ltd; is a high-tech enterprise with all vitality, potential and comprehensive strength.
The company is located in Wu Yuan Industrial Park of Hai Yan District in Jia Xing City and the location is very convenient with good
transportation links to the neighboring Shanghai and Ningbo. On the basis of technology development, the company has taken in a
group of experienced personnels who are talented in senior management, marketing and skills of producing. In the company, great
attention is paid to basic management, stable quality, continuously improving pre-sale service, sale and after-sale services, and enhancing
the market competitiveness of our products. Main products of our company: Alarm security cable, Telephone cable, Battery cable, Audio
speaker cable, Amplifier installation kit, Microphone cable, Power cable, Electronic cable, Accessory, etc. Since its foundation, the company
keeps living up to the belief of :"honest selling, best quality, people-orientation and benefits to customers." We are doing everything to offer
our customers with best services and best products. We promise that we'll be responsible all the way to the end once our services begin.
1. Q; Are you manufacture or trading company?
A: We are manufacture has more than 10 years manufacturing experiences.
2.Q: Do you acceptt OEM order?
A: Yes
3.Q: Where is your factory located ?
A: we located in Haiyan, Jiaxing, Zhejiang, next to shanghai.
4 : Q: Can you offer sampple?
A: Yes, we can offer sample, whether free depend on your detail requirement.
5: Q: What is your payment term?
A: We have several payment terms for you,T/T,Western Union,Paypal,L/C,etc.
6: Q:What about the lead time for mass production?
A:20ft contaniner production tme usually is about 10-15days
