Basic Info.
Model NO.
E71t-1 /E71t-1c/E71t-GS
OEM
Accept
Transport Package
15kg/Roll, 1080kg/Pallet
Specification
0.8mm, 0.9mm, 1.0mm, 1.2mm, 1.4mm, 1.6mm
Trademark
TYUE
Origin
China
HS Code
83112000
Production Capacity
1000 Spool
Product Description

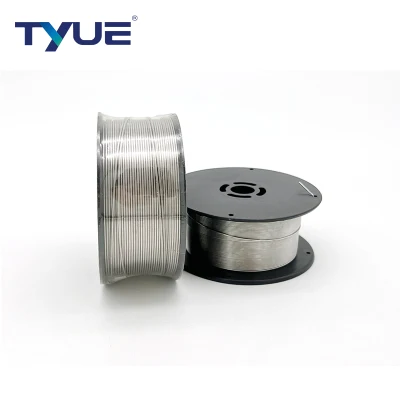

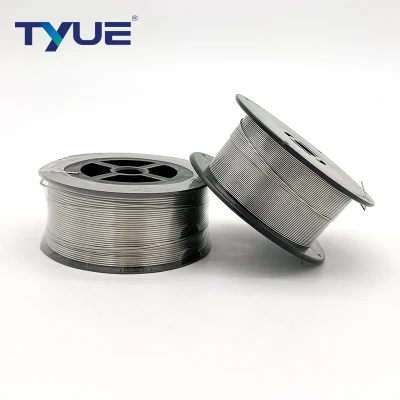

Flux Cored Welding Wire Self-Shielded E71t-1 /E71t-1c/E71t-GS
| Product Name | Hot sale & high-quality AWS 5.20 e71t-1 MIG flux core welding wires |
| Material | LOW CARBON STEEL |
| Color | silvery |
| Standard | GB, AWS |
| Advantage | Flux Cored Welding Wire is suitable to work in all positions with stable arc less splash , less welding smoke , shaped good appearance , high welding efficiency, inherent quality stable and reliable , good mechanical property of deposited metal . |
| Application | Suitable for welding key structure steel made of low carbon steel and low-allow steel , specially suitable for welding some key structures like shipbuilding, mechanical manufacture, pressure vessels , boilers , petroleum machinery , chemical machinery , hoisting machinery , etc.... |
| About sample | Free samples supplied, Postage will be on the customer's charge. But postage could be deducted from the first order |
| Chemical Composition of Deposited Metal (%)(CO2Shielding Gas) | |||||
| Chemical Composition | C | Mn | Si | S | P |
| Guarantee Value | ≤0.18 | ≤1.75 | ≤0.90 | ≤0.030 | ≤0.030 |
| General Result | 0.05 | 1.46 | 0.42 | 0.01 | 0.017 |
| Reference Current (DC+) | ||||
| Wire Diameter(mm) | φ1.2 | φ1.4 | φ1.6 | |
| Current Range(A) | Downhand Welding | 120~300 | 150~400 | 180~450 |
| Vertical Upward Welding and Overhead Position Welding | 120~260 | 150~270 | 180~280 | |
| Vertical Downward Welding and Overhead Position Welding | 200~300 | 220~300 | 250~300 | |
| Horizontal Welding | 120~280 | 150~320 | 180~350 | |

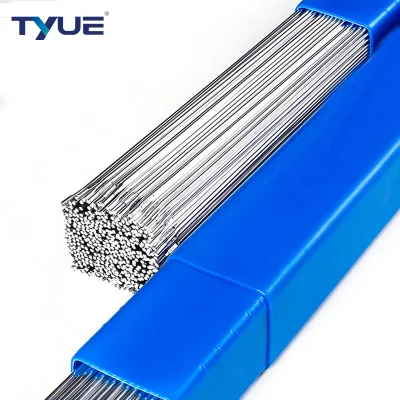

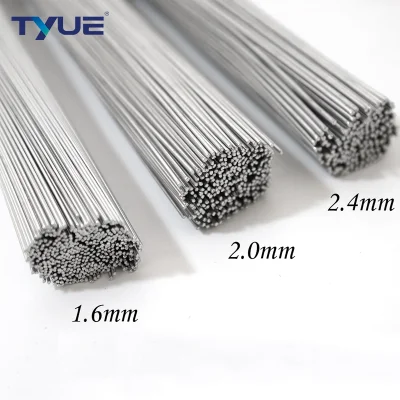

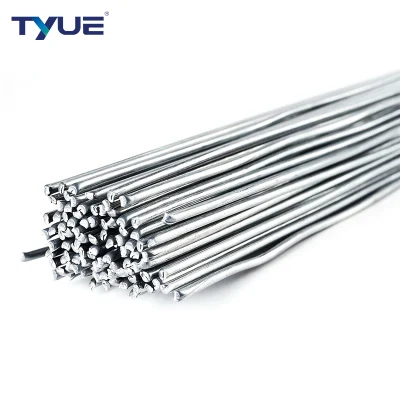

Our Other Welding Products
If you are interested, please click on the below picture to enter the link
| FAQ |
Q: What is delivery time / lead time ?
A: 2-3 weeks.
Q: What is your minimum order ?
A: 3000kgs/each size. (MOQ for stainless steel welding electrode)
Q: Can we visit your factory ?
A: Yes. Welcome to visit our factory at any time.
Q: Can you provide free sampe ?
A: Yes. Free samples are available for you.
