Basic Info.
Product Description
Description:
Model No.: E309LT1-1
Flux contanining: Containing flux
Gas: not required (self shielded)
Diameter:0.8mm, 1.0mm, 1.2 mm, 1.6 mm
Type: Rolling
Weight: (0.5kg 1kg, 5kg, 15kg)/spool, 200 kgs/drum
Export Markets: Global

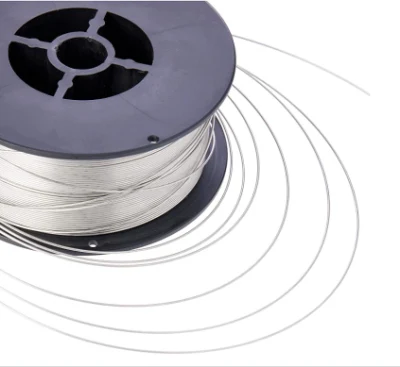

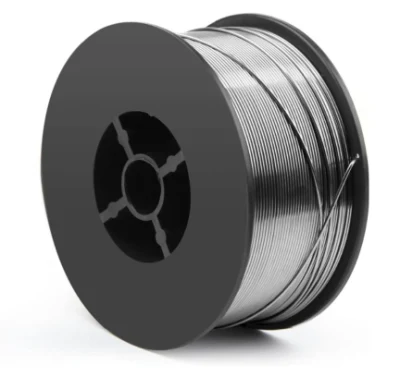

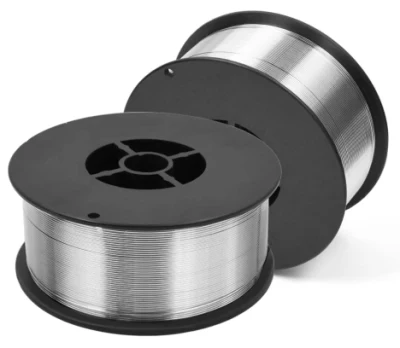

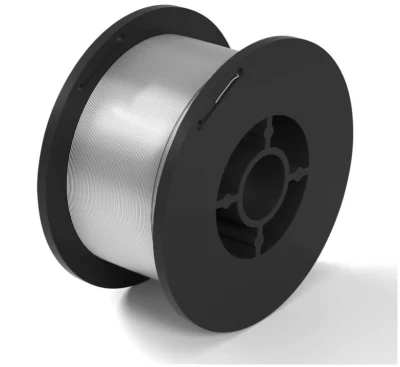

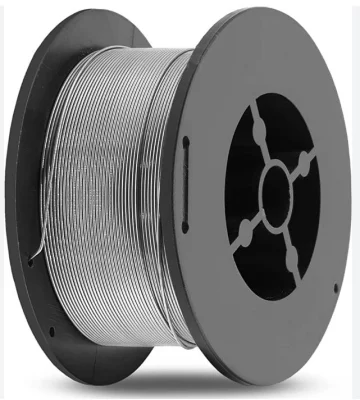

E309LT1-1 is self shielded flux cored stainless steel welding wire and designed for welding work in stainless steel structures of 06Cr19Ni10 and 07Cr19Ni11Ti which required excellent corrosion resistance in deposited metal, such as stainless steel code of 301, 302, 304, 304L, 308 and 308L, 18%Cr-8%Ni stainless steel of petrochemical and pressure vessel welding. The working condition is less then 300°C.
Feature:
·The product is advantaged in low spatter & beautiful shape.
·Easy dross removal
·Uniform composition of welding.
·No shielding gas required,which greatly increases the convenience and flexibility of the welding operation.
·This product is suitable for 350A and 500A general welding equipment and other small welding machines can be used.
·It is also suitable for self-protected special welding machines with full output power of 250A and 200A.
DEPOSIT COMPOSITION: (%)
| Item | C | Mn | Si | S | P |
| Value | 0.28 | 1.06 | 0.38 | 0.011 | 0.012 |
MECHANICAL PROPERTIES:
| Item | Tensile Strength Rm(Mpa) | Yield Strength REl(Mpa) | Elongation (%) |
| Values | 581 | 40 | 47 |
Welding reference specification:
wire diameter(mm) | 0.8 | 0.9 | 1.0 | 1.2 | 1.4 | 1.6 |
Welding voltage(V) | 14-20 | 14-20 | 16-22 | 18-24 | 20-26 | 20-26 |
welding current(A) | 120-180 | 120-180 | 120-200 | 150-230 | 170-260 | 170-260 |
extension length(mm) | 15-20 | 15-20 | 15-20 | 15-20 | 15-20 | 15-20 |
Unlock versatility with this gasless MIG wire. Whether you're a professional welder, a metalworking hobbyist, or a DIY enthusiast, this 0.030" diameter wire is suitable for various projects. Application:
Suitable for outdoor stainless steel welding operations, such as exhibition stands, stainless steel structural parts.
WELDING POSITION:Suitable for all positions welding.
