Basic Info.
Product Description

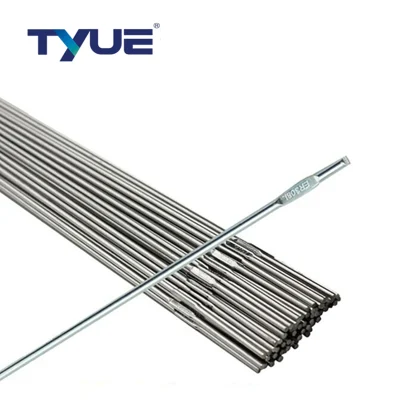

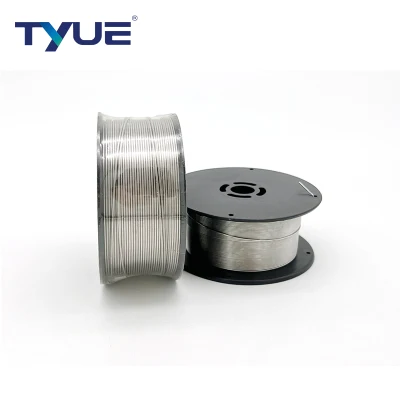

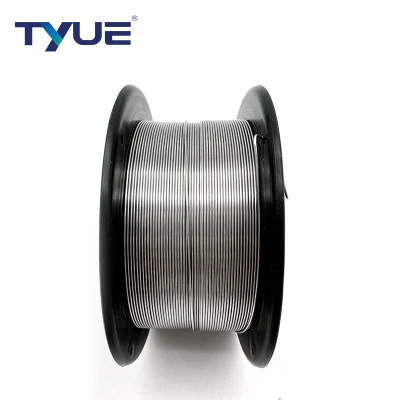

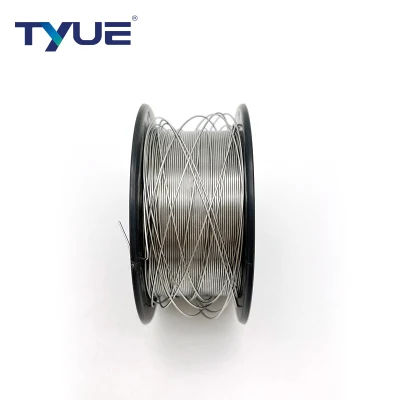

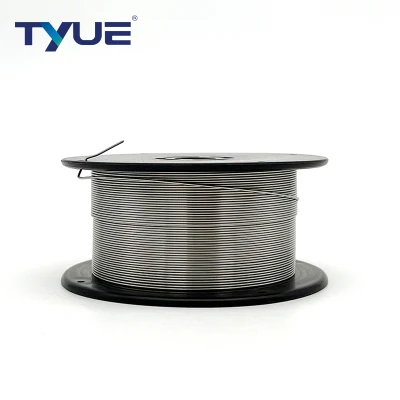

ER316L stainless steel mig and tig welding wire for
ER316L stainless steel mig welding wire with stable arcProduct details
MIG diameter | 0.8mm 0.9mm 1.0mm 1.2mm 1.6mm |
TIG diameter | 1.6mm 2.0mm 2.4mm 3.0mm 3.2mm 4.0mm |
Raw material | stainless steel alloy |
Packing 1 | D100-1kg |
Packing 2 | D200-5kg |
Packing 3 | D300-15kg |
MOQ | 100 kgs |
Delivery | 5-7 days |
Product Keywords | ER316L stainless steel mig and tig welding wire for welding |
ER316
Description: ER316 is TIG welding wire for stainless steel. The weld metal is austenitic structure containing 19%Cr-12%Ni-2%Mo, which is excellent in corrosion resistance, heat resistance and crack resistance. Because Mo contains good corrosion resistance to acetic acid, sulfurous acid, phosphoric acid and salts, especially against chloride ion pitting.Uses: Used for the welding of the same type of stainless steel, but also for the welding of high-chromium steel and dissimilar steel without heat treatment after welding.
Item | C | Si | Mn | P | S | Cr | Ni | Mo | Cu |
Standard | ≤0.08 | 0.30- | 1.00- | ≤0.030 | ≤0.030 | 18.00- | 11.00- | 2.00- | ≤0.75 |
Test | 0.048 | 0.43 | 1.78 | 0.012 | 0.010 | 19.23 | 12.5 | 2.52 | 0.30
|
ER316L
Description: ER316L is a TIG welding wire for ultra-low carbon stainless steel. The weld metal is austenitic structure containing 19%Cr-12%Ni-2%Mo, which is excellent in corrosion resistance, heat resistance and crack resistance. Because Mo contains good corrosion resistance to acetic acid, sulfurous acid, phosphoric acid and salts, especially against chloride ion pitting.Uses: Used for welding welding of urea and synthetic fiber equipment. It can also be used for welding high-chromium steel and dissimilar steel without heat treatment after welding.
Item | C | Si | Mn | P | S | Cr | Ni | Mo | Cu |
Standard | ≤0.030 | 0.30- | 1.00- | ≤0.030 | ≤0.030 | 18.00- | 11.00- | 2.00- | ≤0.75 |
Test | 0.022 | 0.42 | 1.89 | 0.009 | 0.007 | 19.12 | 12.62 | 2.62 | 0.34 |
Our Other Welding Products
If you are interested, please click on the below picture to enter the link
FAQ |
Q: What is delivery time / lead time ?
A: 2-3 weeks.
Q: What is your minimum order ?
A: 3000kgs/each size. (MOQ for stainless steel welding electrode)
Q: Can we visit your factory ?
A: Yes. Welcome to visit our factory at any time.
Q: Can you provide free sampe ?
A: Yes. Free samples are available for you.
