Product Description

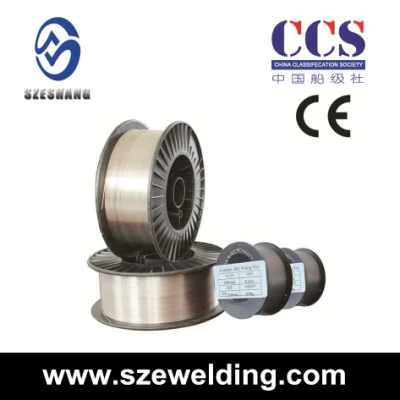

Er309L Stainless Steel Welding Wire
Stainless Steel MIG Welding Wire ER309L Application:
Commonly used in the welding of Carbon steel with Stainless steel dissimilar steel, petrochemical industries such as the reaction vessel wall surfacing transaction metal, or poor toughness martensitic, pearlite stainless steel.
Standard of Stainless Steel MIG Welding Wire ER309L:
YB/T5092-H03Cr24Ni13Si
AWSA5.9 ER309L
ISO14343-A-G 23 12 H
Specifications of Stainless Steel MIG Welding Wire ER309L:
Chemical Compositions of Stainless Steel Welding Wire:
| C | Si | Mn | P | S | Cr | Ni | Mo | Cu | |
| 304 | 0.08 | 0.30-1.00 | 2.00 | 0.045 | 0.030 | 18.00-20.00 | 8.00-11.00 | 0.18 | 0.003 |
| 304L | 0.03 | 0.30-1.00 | 2.00 | 0.045 | 0.030 | 18.00-20.00 | 8.00-12.00 | ||
| ER307 | 0.04-0.14 | 0.30-0.65 | 4.30-4.75 | 0.030 | 0.030 | 19.50-22.00 | 8.00-10.70 | 0.5-1.5 | 0.75 |
| ER308 | 0.08 | 0.30-0.65 | 4.30-4.75 | 0.030 | 0.030 | 19.50-22.00 | 9.00-11.00 | 0.75 | 0.75 |
| ER308L | 0.03 | 0.30-0.65 | 1.50-2.30 | 0.03 | 0.02 | 19.5-21.5 | 9.00-11.00 | 0.75 | 0.75 |
| ER308LSi | 0.03 | 0.65-1.00 | 1.60-2.40 | 0.03 | 0.02 | 19.5-21.5 | 9.0-11.0 | 0.75 | 0.75 |
| ER309 | 0.12 | 0.30-0.65 | 1.00-2.50 | 0.03 | 0.03 | 24.0-25.0 | 12.0-14.0 | 0.75 | 0.75 |
| ER309L | 0.03 | 0.3-0.65 | 1.5-2.3 | 0.03 | 0.02 | 23.0-25.0 | 12.0-14.0 | 0.75 | 0.75 |
| ER309LSi | 0.03 | 0.65-1.0 | 1.6-2.4 | 0.03 | 0.02 | 23.0-25.0 | 12.0-14.0 | 0.75 | 0.75 |
| ER316 | 0.08 | 0.3-0.65 | 1.0-2.5 | 0.03 | 0.03 | 18.00-12.00 | 11.0-14.0 | 2.0-3.0 | 0.75 |
| ER316L | 0.03 | 0.3-0.65 | 1.5-2.3 | 0.03 | 0.02 | 18.0-20.0 | 11.0-13.0 | 2.05-2.55 | 0.75 |
| ER316LSi | 0.03 | 0.65-1.0 | 1.6-2.4 | 0.03 | 0.02 | 18.0-20.0 | 11.0-13.0 | 2.05-2.55 | 0.75 |
| ER310 | 0.08-0.15 | 0.3-0.65 | 1.0-2.5 | 0.03 | 0.03 | 25.0-28.0 | 20.0-22.5 | 0.75 | 0.75 |
| ER347 | 0.08 | 0.3-0.65 | 1.0-2.5 | 0.03 | 0.03 | 19.0-21.5 | 9.0-11.0 | 0.75 | 0.75 |
| ER317 | 0.08 | 0.3-0.65 | 1.0-2.5 | 0.03 | 0.01 | 18.5-20.5 | 13.0-15.0 | 3.0-4.0 | 0.75 |
| ER321 | 0.08 | 0.3-0.65 | 1.5-2.5 | 0.03 | 0.01 | 18.5-20.5 | 9.0-10.5 | 0.75 | 0.75 |
Mechanical Properties of Welding Wire:
| Tensile strength Rm(Mpa) | Yield strength Rel or Rp0.2(Mpa) | Elongation(%) | Tensile strength Rm(Mpa) | Yield strength Rel or Rp0.2(Mpa) | Elongation(%) | ||
| 304 | 550 | -- | 25 | ER309LSi | 510 | 320 | 25 |
| 304L | 510 | -- | 25 | ER316 | 510 | 320 | 25 |
| ER307 | 590 | 350 | 25 | ER316L | 510 | 320 | 25 |
| ER308 | 550 | 350 | 25 | ER316LSi | 510 | 320 | 20 |
| ER308L | 510 | 320 | 25 | ER310 | 550 | 350 | 25 |
| ER308LSi | 510 | 320 | 25 | ER347 | 550 | 350 | 25 |
| ER309 | 550 | 350 | 25 | ER317 | 550 | 350 | 25 |
| ER309L | 510 | 320 | 25 | ER321 | 550 | 350 | 25 |
APPLICATIONS:
It can be used in the welding of 12Cr18Ni9 (SUS 302), 06Cr19Ni10 (SUS 304) and other materials.
FEATURES:
The welding wire is 21%Cr-10%Ni austenitic stainless steel welding wire, with stable welding arc and beautiful shape. And it can be used for all position welding.
PRECAUTIONS:
1.Clear rust, oil, water and other impurities on the weldments before welding.
2.It is recommended to use Ar+(1%-3%)O2 as shielding gas in MIG welding, and use pure argon as shielding gas inTIG welding.
3.The user should develop an appropriate production welding specifications acccording to the circumstances.

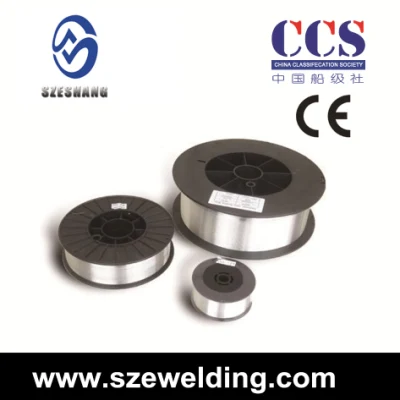

7.Spool type: D270/D300 plastic spool, K300 Metal spool
8.Cer: ABS ISO CE GL BV NK LR CCS TUV DB ROHS
9.Confirm with:
GB/T ER50-6/ DIN SG2/ JIS YGW12
AWS ER70S-6/ BS A18/ EN G3Si1
Once a wire type is determined for your welding equipment, two additional pieces of information are needed in order to purchase this consumeable. The first is the wire diameter, which is usually given in thousands of an inch. The most common sizes for welding sheet metal are 0.35 and 0.45. The table below is commonly found in consumeable spec sheets and is worth copying for reference. It tells you how to set the controls on your equipment and which gas you need, depending on the welding process.
Packaging & Shipping5kg,15kg,20kg/spool into carton,72 cartons/pallet;250kg/drum,4 drums/pallet.
