Product Description

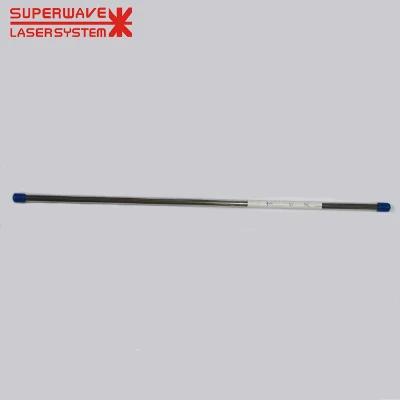

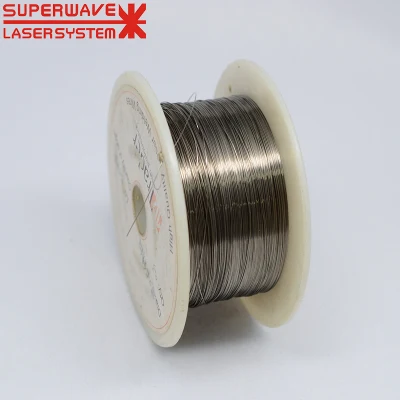

Used for Mold Laser Welding Machine
Best quality P20/SKD11/NAK80/H13 Mold Wire laser welding filler wires for mould repairing Is a magnesium containing 5% of the aluminum alloy filled with metal, has a good resistance to seawater
corrosion, in the anode after treatment of the color is white, tensile strength of 290MP.
Specifications: 0.2/0.3/0.4/0.5/0.6/0.8/0.9/1.0/1.2/1.6/2.0/2.4/3.2
DC53 welding wire
Welding hot work die steel, heat shock cracking, thermal wear, unique performance often become a repair die casting Mold, hot forging, hot extrusion die steel up to the choice.
Hardness:51--53HRC
Specifications:0.2/0.3/0.4/0.5/0.6/0.8/0.9/1.0/1.2/1.6/2.0/2.4
ingredient: C:0.28-0.35 | MN:0.40-0.50 | SI:0.80-1.00 | CR:5-6 |
MO:2.0-2.50 | V:0.60-0.80 |
|
Specification
Laser mold welding wire | ||
Model | Diameter(mm) | Hardness |
718 | 0.2/0.3/0.4/0.5/0.6/0.8/0.9/1.0/1.2/1.6/2.0/2.4 | 33-36HRC |
738 | 0.2/0.3/0.4/0.5/0.6/0.8/0.9/1.0/1.2/1.6/2.0/2.4 | 35-38HRC |
P20 | 0.2/0.3/0.4/0.5/0.6/0.8/0.9/1.0/1.2/1.6/2.0/2.4 | 28-32HRC |
S136 | 0.2/0.3/0.4/0.5/0.6/0.8/0.9/1.0/1.2/1.6/2.0/2.4 | 32-38HRC |
SKD11 | 0.2/0.3/0.4/0.5/0.6/0.8/0.9/1.0/1.2/1.6/2.0/2.4/3.2 | 50-55HRC |
NAK80 | 0.2/0.3/0.4/0.5/0.6/0.8/0.9/1.0/1.2/1.6/2.0/2.4 | 38-43HRC |
8407 | 0.2/0.3/0.4/0.5/0.6/0.8/0.9/1.0/1.2/1.6/2.0/2.4/3.2 | 53-58HRC |
2343 | 0.2/0.3/0.4/0.5/0.6/0.8/0.9/1.0/1.2/1.6/2.0/2.4/3.2 | 51-54HRC |
SKD61 | 0.2/0.3/0.4/0.5/0.6/0.8/0.9/1.0/1.2/1.6/2.0/2.4/3.2 | 53-57HRC |
618 | 0.2/0.3/0.4/0.5/0.6/0.8/0.9/1.0/1.2/1.6/2.0/2.4 | 31-33HRC |
STAVAX | 0.2/0.3/0.4/0.5/0.6/0.8/0.9/1.0/1.2/1.6/2.0 | 33-36HRC |
2344 | 0.2/0.3/0.4/0.5/0.6/0.8/0.9/1.0/1.2/1.6/2.0/2.4/3.2 | 52-55HRC |
2083 | 0.2/0.3/0.4/0.5/0.6/0.8/0.9/1.0/1.2/1.6/2.0/2.4 | 31-34HRC |
H13 | 0.2/0.3/0.4/0.5/0.6/0.8/0.9/1.0/1.2/1.6/2.0/2.4/3.2 | 53-57HRC |
2311 | 0.2/0.3/0.4/0.5/0.6/0.8/0.9/1.0/1.2/1.6/2.0/2.4/ | 35-38HRC |
SKH-9 | 0.2/0.3/0.4/0.5/0.6/0.8/0.9/1.0/1.2/1.6/2.0/2.4 | 61-63HRC |
45C | 0.2/0.3/0.4/0.5/0.6/0.8/0.9/1.0/1.2/1.6/2.0/2.4 | 29-31HRC |
55C | 0.2/0.3/0.4/0.5/0.6/0.8/0.9/1.0/1.2/1.6/2.0/2.4 | 29-34HRC |
2316 | 0.2/0.3/0.4/0.5/0.6/0.8/0.9/1.0/1.2/1.6/2.0/2.4/3.2 | 34--38HRC |
CR12MOV | 0.2/0.3/0.4/0.5/0.6/0.8/0.9/1.0/1.2/1.6/2.0/2.4/3.2 | 52--56HRC |
2738 | 0.2/0.3/0.4/0.5/0.6/0.8/0.9/1.0/1.2/1.6/2.0/2.4 | 33-38HRC |
HSS | 0.2/0.3/0.4/0.5/0.6/0.8/0.9/1.0/1.2/1.6/2.0/2.4 | 62-65HRC |
D2 | 0.2/0.3/0.4/0.5/0.6/0.8/0.9/1.0/1.2/1.6/2.0/2.4 | 47-52HRC |
935 | 0.2/0.3/0.4/0.5/0.6/0.8/0.9/1.0/1.2/1.6/2.0/2.4/3.2 | 50--52HRC |
1.2343 | 0.2/0.3/0.4/0.5/0.6/0.8/0.9/1.0/1.2/1.6/2.0/2.4/3.2 | 42-50HRC |
1.2344 | 0.2/0.3/0.4/0.5/0.6/0.8/0.9/1.0/1.2/1.6/2.0/2.4/3.2 | 42-50HRC |
FDAC | 0.2/0.3/0.4/0.5/0.6/0.8/0.9/1.0/1.2/1.6/2.0/2.4/3.2 | 40-48HRC |
420 | 0.2/0.3/0.4/0.5/0.6/0.8/0.9/1.0/1.2/1.6/2.0/2.4 | 38-43HRC |
