Basic Info.
Model NO.
SYNMIG-140
Duty Cycle
60%
Efficiency
85%
DC Lift TIG
Available
Wire Reel Weight
1kg/5kg
Transport Package
Carton
Specification
64*32*48cm
Trademark
DECAPOWER
Origin
Taizhou, China
HS Code
8513190000
Production Capacity
20000PCS/Month
Product Description
Model:SYNMIG140/160/180(220V,110/220V)
The SYNMIG welder is an inverter-based Half-bridgeMicroprocessor controlled portable welding machine.lt integrates multiple welding process such as GMAW,FCAW,SMAW & GTAW, preset parameters and multiple adjustable parameters to adapt to welding ofvarious materials and sizes.
With the Digital displayer and quick Synergy regulationof welding parameters, it brings you the unique welding experience.It's not only do the welding jobseasily, but also help beiggners learn the parmetersetting between the wire feeding speed and ARC Volt.What's more, the expreinced operator can also intervene manually along the arc length.
The SYNMIG welder is an inverter-based Half-bridgeMicroprocessor controlled portable welding machine.lt integrates multiple welding process such as GMAW,FCAW,SMAW & GTAW, preset parameters and multiple adjustable parameters to adapt to welding ofvarious materials and sizes.
With the Digital displayer and quick Synergy regulationof welding parameters, it brings you the unique welding experience.It's not only do the welding jobseasily, but also help beiggners learn the parmetersetting between the wire feeding speed and ARC Volt.What's more, the expreinced operator can also intervene manually along the arc length.

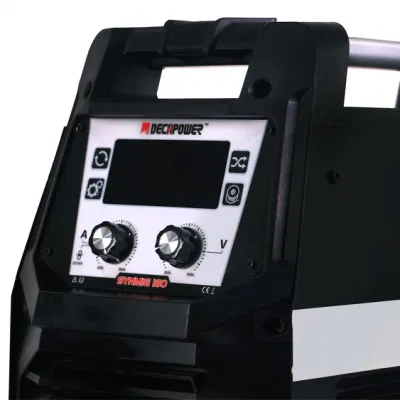

EASY-TO-UNDERSTAND VISIUAL INTERFACE ensures proper machine setup and parameter selection, reducing setup time and increasing weld time.
QUICK-ACCESS to the process you need. The icons across the top illuminate when active. Soft-Key buttons near the dispalyer select functions accurately - makes setup or change quick, easy and intuitive.
Friendly to the beginners, help users gradually welding skills refere to the preset pramater.
QUICK-ACCESS to the process you need. The icons across the top illuminate when active. Soft-Key buttons near the dispalyer select functions accurately - makes setup or change quick, easy and intuitive.
Friendly to the beginners, help users gradually welding skills refere to the preset pramater.
| Model | SYNMIG-140(BV) | SYNMIG-160(BV) | SYNMIG-180(BV) |
| Rated Input Voltage (V) | 220V | 220V | 220V |
| Rated Input Voltage(V) | IGBT INVERTER | IGBT INVERTER | IGBT INVERTER |
| Rated input Frequency(Hz) | 50/60Hz | 50/60Hz | 50/60Hz |
| Rated Input Power (Kw) | 3.7KW | 4.4KW | 5.2KW |
| Open Circuit Voltage (V) | 60V | 60V | 60V |
| Output Current MIG/MAG(A) | 20 ~140A@220V,20-125A@110V | 20 ~ 160A@220V,20-125A@110V | 20 ~ 180A@220V,20-125A@110V |
| Output Current MMA (A) | 20 ~140A@220V,20-125A@110V | 20 ~ 160A@220V,20-125A@110V | 20 ~ 180A@220V,20-125A@110V |
| DC LIFT TIG welding | Available | Available | Available |
| Rated Duty Cycle (%) | 60% | 60% | 60% |
| Efficiency (%) | 85% | 85% | 85% |
| Insulation Class | F | F | F |
| Protecting Grade | IP21S | IP21S | IP21S |
| Electrode Welding Support | 4 mm | 4 mm | 5 mm |
| Welding wire Support | 0.6mm/0.8mm/1.0mm | 0.6mm/0.8mm/1.0mm | 0.6mm/0.8mm/1.0mm |
| N.W./G.W. (KG) | 13/20KG | 13/20KG | 13/20KG |
| Machine Size (mm) | 520x320x400mm | 520x320x400mm | 520x320x400mm |
| Pacakging | Brown Carton | Brown Carton | Brown Carton |
| Carton Dimension (mm) | 660x320x510mm | 660x320x510mm | 660x320x510mm |
Our Manufacturer
TAIZHOU LEMIN WELDING EQUIPMENT CO., LTD is the manufacturer of DECAPOWER company group.We're focusing on developing and producing reliable quality Inverter Welding Machines and Air Plasma Cutter with favorable price, such as MMA/ARC WELDER, TIG WELDER, MIG WELDER and AIR PLASMA CUTTER which has been approved by CSA, CCC, CE certificate.
Core Target
Tailor client's assortment products with innovation, competitive price and well presentation.
People
We're culturally diverse globally gained. Our Knowledge and Industry focused terms are driven to satify and exceed customer's
expectations.
expectations.
Culture
Our "CAN-DO" and "YES.WHY NOT" philosophy defines DECAPOWER's global approach. Our customer-centric spirit makes it easy to work
and being partner with us.
and being partner with us.
FAQ
1. Who are we?
We are the professional manufacturer of welding machines and plasma cutters since 2011.
3. How can we guarantee the quality?
Always a pre-production sample before mass production;
Always 100% final Inspection before shipment.
5. Why choose us?
OEM/ODM is available.
Small order is acceptable, even 1 piece.
Quick Delivery is available in 45 days.
Overseas Warehouse (Russia & West-Europe) supports Fast dispatch.
We are the professional manufacturer of welding machines and plasma cutters since 2011.
We're located at Wenling City of Zhejiang Province in maindland of China.
2. What do we manufactur?
We're mianly producing Inverter Welding Machine of
We're mianly producing Inverter Welding Machine of
MMA welders from 100 Amp to 500Amp (DIY or Industry purpose).
TIG welders from 160Amp to 300Amp, (DC or AC/DC).
MIG/MAG welders from 120Amp to 230A, (Gas or Gasless).
Air Plasma Cutter from 40Amp to 120Amp, (Pilot or HF arc strike).
3. How can we guarantee the quality?
Always a pre-production sample before mass production;
Always 100% final Inspection before shipment.
4. What is your warranty terms?
We provide 1 year warranty time for the whole machine since you received it.
We provide 1 year warranty time for the whole machine since you received it.
During the time, we will supply you the free spare parts for maintanence.
Meanwhile, we offer on-line technical supports for operating guide and troubleshooting.
5. Why choose us?
OEM/ODM is available.
Small order is acceptable, even 1 piece.
Quick Delivery is available in 45 days.
Overseas Warehouse (Russia & West-Europe) supports Fast dispatch.
