Product Description
Description :
E308-16 is a line titanium type welding electrode for extra-low carbon stainless steel.The weld metal has excellent mechanical
properties and shows good resistance to intergranular corrosion due to the carbon content in it is ≤. 0.04% b. It can be used for all position welding with excellent performance:stable arc,small spatters,good appearance of weld.And also the welding electrode shows good heat-resistance character,not easy to turn red and gas porosity is not produced.
Application :
It is suitable for welding structures fabricated by extra-low carbon 022Cr-19Ni10 stainless steel,such as synthetic fibre,fertilizer,
petrochemical equipment, etc
Chemical Composition of Deposited Metal(E308L-16) (%)
Item | C | Mn | Si | Cr | Ni | S | P |
standard value | ≤0.04 | 0.5-2.5 | ≤0.90 | 18.0-21.0 | 9.0-11.0 | ≤0.030 | ≤0.040 |
Example value | 0.033 | 0.90 | 0.65 | 23.50 | 9.65 | 0.010 | 0.021 |
Mechanical Properties of Deposited Metal (%)
Item | Tensile Strength(MPa) | Elongation (%) |
standard value | ≥520 | ≥35 |
Example value | 580 | 45 |

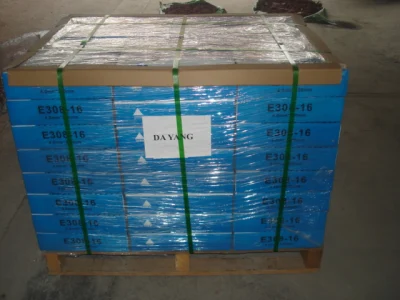

Package and delivery
Package details:
1. 5kg/pvc plastic box; 4 pvc plastic boxes(20kgs)/carton; 50 carton(1 ton)/pallet
2. As clients' requirement
Delivery:
Time: Normally ready goods within 8 to 25 days.
Term: CIF CNF/CFR FOB EXW
5.About us
1.We are Lin an Dayang Welding Material Co., Ltd., one of leading manufacturing enterprises in China,
specialized in making consumables like welding electrodes, welding wire, for 20 years.
2.Professional production team, product line, experience technical experts who engaged in this industry
for about 20 years, We have the professional production line for welding electrode now.

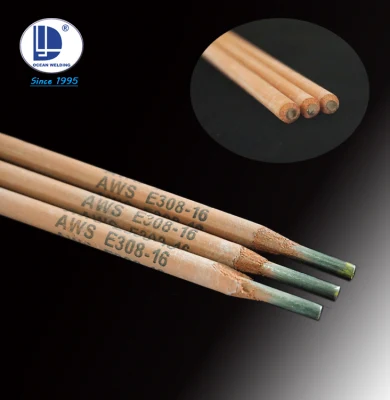

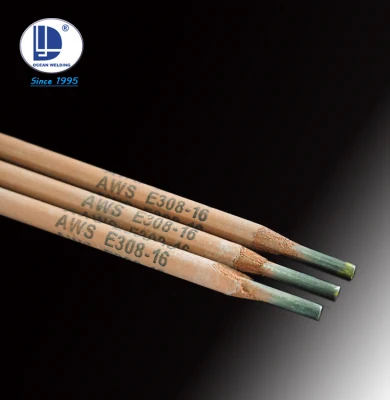

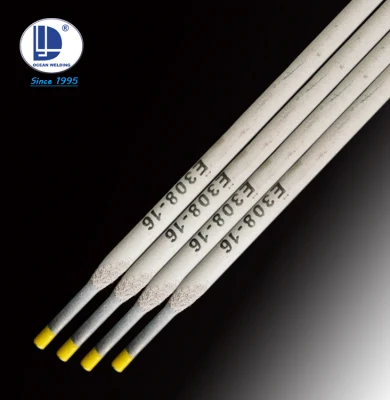

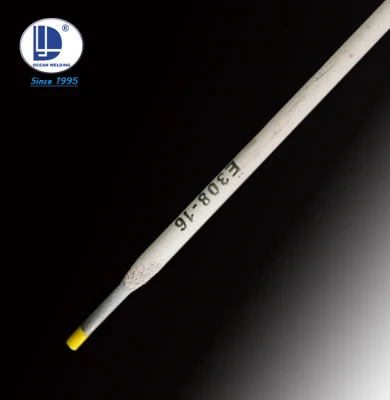

6.Product picture
Suitable for welding stainless steel structures of synthetic fibre,petrochemical equipment as well as for welding of similar structures.Also it can be used in dissimilar steels and clad steels.
TYPICAL MECHANICAL PROPERTIES(AS WELDED)
Yield Strength, psi...64, 000
Tensile Strength, psi...83, 300
% Elongation...46
WELDING CURRENT:AC-DCEP(Electrode Positive).
8.Packaging & Delivery for steel welding electrode
1) 2.5mm X 300mm, 1-5kg/ plastic bag+ inner box
2) 3.2mm X 350mm, 1-5kg/ plastic bag+ inner box
3) 4.0mm X 350mm, 1-5kg/ plastic bag+ inner box

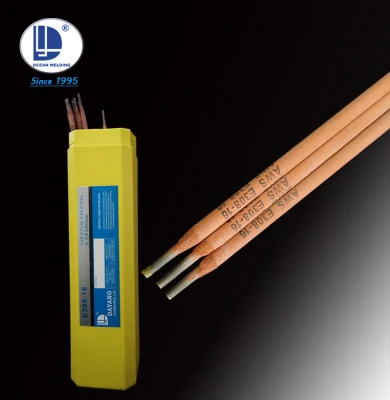

9.Product Show
