Product Description
Certificates: ISO CE TUV UKCA etc.

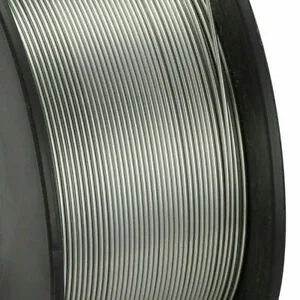

Packing type: spool (D200, D270, D300, K300); drum (100KG, 200KG, 250KG); coil (25KG); plastic tube (5KG, 10KG)
Popular types:ER316LSI offers identical characteristics to 316L. The increased silicon content enhances arc stability while minimizing the need for post-weld grinding. The low carbon present in the welded metal provides strong protection against intergranular corrosion.
ER308L shares the same composition as type 308, with the exception that the carbon content is limited to a maximum of 0.03% to minimize the risk of intergranular carbide precipitation. Specifically designed for welding Types 304L, 321, and 347 stainless steels, ER308L is well-suited for applications in cryogenic temperatures.
Typical test value of wire
| AWS | T.S. | Elo. | C | SI | MN | P | S | CR | NI |
| ER304 | 570 | 42 | 0.045 | 0.420 | 1.07 | 0.030 | 0.002 | 18.24 | 8.08 |
| ER308 | 598 | 44 | 0.039 | 0.348 | 1.74 | 0.019 | 0.011 | 20.13 | 9.46 |
| ER308L | 555 | 45 | 0.025 | 0.431 | 1.63 | 0.011 | 0.006 | 20.05 | 10.21 |
| ER308LSi | 561 | 46 | 0.025 | 0.751 | 1.97 | 0.015 | 0.008 | 20.71 | 10.22 |
| ER309 | 611 | 45 | 0.056 | 0.423 | 1.67 | 0.015 | 0.008 | 24.25 | 13.09 |
| ER309L | 576 | 43 | 0.027 | 0.383 | 1.78 | 0.017 | 0.007 | 23.66 | 12.84 |
| ER309LSi | 588 | 40 | 0.023 | 0.728 | 2.04 | 0.014 | 0.008 | 23.95 | 13.85 |
| ER310 | 608 | 46 | 0.089 | 0.390 | 2.03 | 0.011 | 0.009 | 27.42 | 21.65 |
| ER316 | 582 | 39 | 0.050 | 0.367 | 1.75 | 0.016 | 0.008 | 19.02 | 12.74 |
| ER316L | 566 | 44 | 0.023 | 0.392 | 1.94 | 0.009 | 0.008 | 19.32 | 12.41 |
| ER316LSi | 573 | 39 | 0.024 | 0.750 | 1.62 | 0.016 | 0.008 | 18.73 | 11.57 |
| ER317 | 590 | 40 | 0.039 | 0.410 | 1.65 | 0.013 | 0.006 | 19.85 | 14.37 |
| ER321 | 592 | 43 | 0.062 | 0.410 | 1.48 | 0.016 | 0.007 | 19.08 | 9.77 |
| ER347 | 588 | 45 | 0.036 | 0.400 | 1.58 | 0.017 | 0.009 | 20.33 | 9.87 |
| ER430 | 477 | 37 | 0.038 | 0.38 | 0.47 | 0.0163 | 0.006 | 16.23 | 0.25 |
| ER2209 | 723 | 26 | 0.028 | 0.660 | 1.54 | 0.018 | 0.003 | 22.38 | 8.39 |
| ER2594 | 790 | 22 | 0.017 | 0.370 | 0.94 | 0.013 | 0.007 | 25.43 | 9.41 |
Send us an inquiry now for getting a full and up-to-dated mill test data!
| Diameter (mm) | Package type | Weight | Package style |
| 0.8 - 1.6mm 1.2 - 5.0mm 1.6 - 5.0mm | Plastic spool -D100 - D200 - D270 - D300 Steel spool - K300 Plasic tube Drum pack | 5/12/15/20 kg 5/10 kg 25kg 200/250kg | Natural packaging OEM Factory brand |
Now the annual output has exceeded 100 thousand tons per year. With the continuous upgrading of production technology and management mode, the company has become the Chinese industry leader for over 60 years. The company have passed many international certifications, including ABS, CE, DB, VD, LR, ISO. It is the first factory in China who gets the certificate of SG2 and SG3 for TUV approval; also the first and one of the few factories in China that can produce ER70s-6 without any welded joints in whole 250kg for drum pack.
The company is specialized in producing full kinds of welding wires and welding electrodes. The products are widely used in vehicles, engineering, mining machinery, furniture, plumbing, electric power facilities, steel structure, shipbuilding, pressure vessels and other industries.
Q1: What is the delivery time? Do you have products in stock?
A: The number of stocks depends on the demands. After receiving the deposit, we will get your goods ready as soon as possible. The monthly output of the factory is more than 8000 tons. The delivery time for urgent order is negotiable.
Q2: Could I visit the factory?
A: Yes, please contact us in advance to make an appointment!
Q3: Could I get any sample?
A: Yes, we provide sample free of charge (exclude international postage). We are confident for the product of our quality!
Q4: How can we trust your quality?
A: Our factory has over 60 years of history, enjoying great reputation in the world market.
Our products have been certified by various classification societies and help us build long-term cooperation relationship with many top 500 companies.
Q5: Could I used our own package design?
A: Yes, free OEM is available for order over 10tons. The minimum quantity of order is 500 cartons, regardless of weight.
Q6: Do you have other types of welding consumables?
A: Yes, please contact us anytime for details.
