Basic Info.
Model NO.
E309-17, E309L-17
Stainless Steel Welding Rod Type
Chromium Nickel Stainless Steel
Function
Low Hydrogen Type Electrode, Hardfacing Electrode, High Efficient Iron Powder Electrode, Moisture-Proof Electrode, Stainless Electrode
Welding Power
DC/AC
Advantage 1
Quick Strike & Easy Restrike & Easy Slag-Removal
Advantage 2
Stable Arc Performance & Minimal Arc Interference
Advantage 3
Smooth and Shiny Appearance
Advantage 4
Excellent Mechanical Properties
Transport Package
5kg/Box, 20kg/Carton
Trademark
TYUE
Origin
China
HS Code
8311100000
Production Capacity
50000000ton/Year
Product Description

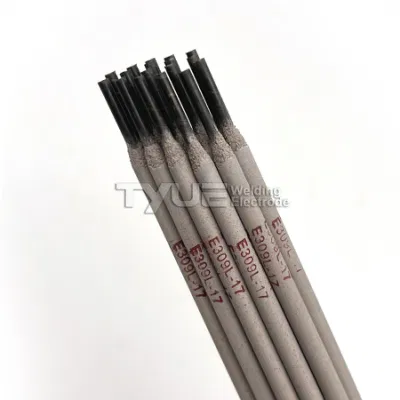

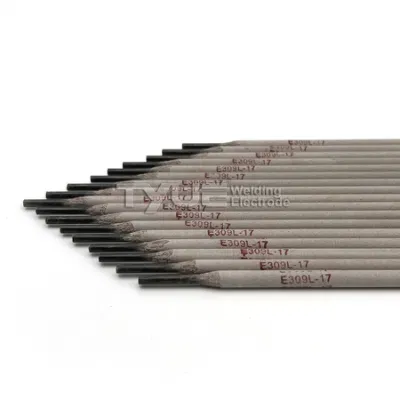

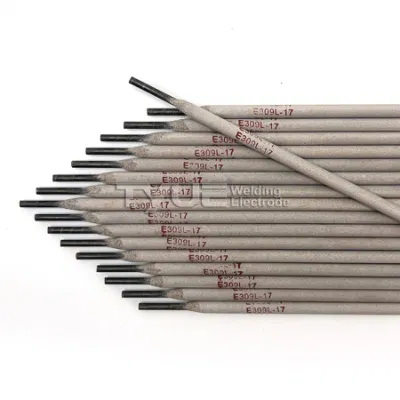

E309L-17 Stainless Steel Welding Electrode
EN ISO 3581-A:2016 :E23 12 L R 12
KS D 7014-2008: E309L-16
EN ISO 3581-B:2016: ES309L-17
JIS Z 3221-2013: ES309L-17
AWS A5.4-2014: E309L-17
Description
Covering is lime titania type for welding of 22%Cr-12%Ni stainless steel and heat-resisting castings, clad side of type 304 clad steels. Welding of dissimilar steels such as Cr-Mo steel or carbon steel to stainless steel.
As its deposited weld metal has an austenitic structure, with suitable ferrite, crack resistance is good, and intergranular corrosion resistance is superior to that of the E309 type.
Redry the electrode at 250~350C for 30~60 minutes prior to use.
| Chemical Composition Deposited Metal (%) | |||||||||
| C | Mn | Si | Cr | Ni | S | P | Mo | Cu | Fn |
| 0.03 | 0.76 | 0.84 | 23.14 | 12.95 | 0.013 | 0.027 | 0.08 | 0.09 | 11.2 |
| Sizes & Recommended Current (AC or DC) | ||||
| Welding rod diameter (mm) | 2.5 | 3.2 | 4.0 | 5.0 |
| welding current (A) | 50-80 | 80-110 | 110-150 | 140-180 |
SIZE:
2.5*300mm(350mm)
3.2*350mm
4.0*350mm(400mm)

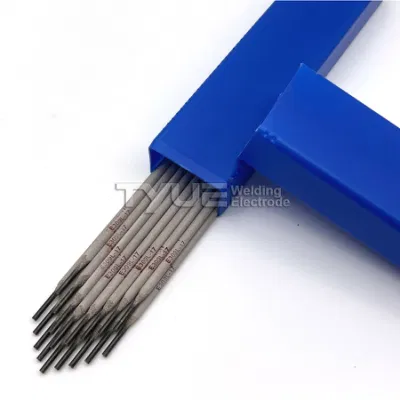

PACKING:
5kg/inner box,
20kg (4box)/outer carton,
1000kgs=1ton=50 cartons packed on a pallet.
-------------------Our Other Welding Products-------------------
If you are interested, please click on the below picture to enter the link
| FAQ |
Q: What is delivery time / lead time ?
A: 2-3 weeks.
Q: What is your minimum order ?
A: 3000kgs/each size. (MOQ for stainless steel welding electrode)
Q: What is your payment term ?
A: 50% T/T in advance, 50% balance paid before shipment.
Q: Can we visit your factory ?
A: Yes. Welcome to visit our factory at any time.
Q: Can you provide free sampe ?
A: Yes. Free samples are available for you.
