Basic Info.
Model NO.
ul1015
Conductor Material
Copper
Sheath Material
PVC
Insulation Material
PVC
Material Shape
Round Wire
Range of Application
Internal Wiring
Certification
ISO9001, RoHS, VDE
Brand
Bort
Conductor
Stranded, Tinned or Bare Copper Conductor
Sample
Conventional Sample Free
Producing Experience
10 Years
No. of Cores
One Core or Multi-Cores
Colors
Could Be Customized Color
Delivery Time
in 7-10days
Packing
100m/Roll, 305m/Roll, Wrap Plastic Film Packaging
Company Type
Manufacturer
Factory Directly
Big Discount with Large Order
Service
OEM, ODM
Transport Package
Carton/Pallet
Specification
Customize
Trademark
BORT
Origin
China
HS Code
8544492900
Production Capacity
300000km/Year
Packaging & Delivery
Package Size
20.00cm * 20.00cm * 15.00cm
Package Gross Weight
0.200kg
Product Description

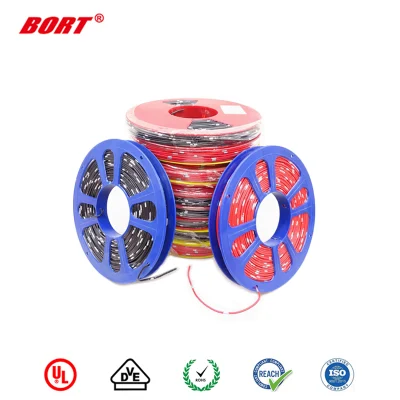

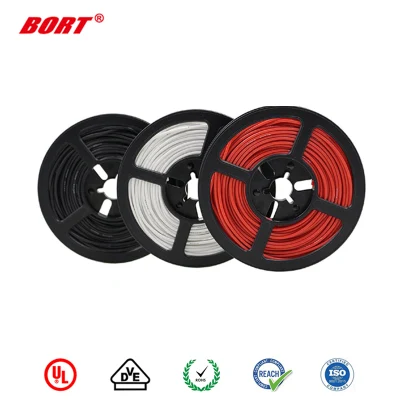

Home Appliances Used UL1015 26AWG 600V PVC Coated Electric Copper Wire PRODUCT DESCRIPTION
★Rated temperature:105ºC
★Rated voltage:300V
★According to:UL Subject758,UL1581,C22.2

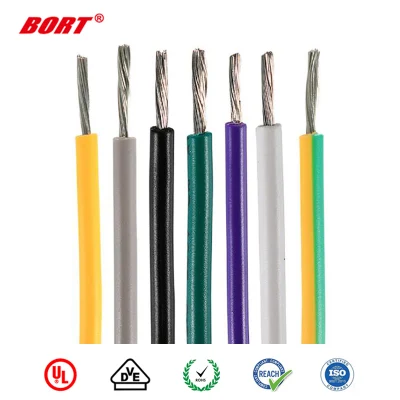

★Solid or stranded,tinned or bare copper conductor
★PVC insulation
★PVC jacket
★Passes UL VW-1 FT1 vertical flame test
★Uniform insulation thickness of wire to ensure
easy stripping and cutting
★For internal wiring of appliance
| Conductor | Finished product | Maximum Resistance at 20ºC | |||
| AWG | NO.of Cond | Insulation Thick. | Outside Thick. | Packing | |
| mm | mm | mm | m/r | Ω/mm | |
| 28 | 7/0.127 | 0.45 | 0.45 | 2.20 | 223.75 |
| 26 | 7/0.16 | 0.45 | 0.45 | 2.30 | 139.76 |
| 24 | 11/0.16 | 0.45 | 0.45 | 2.40 | 88.36 |
| 22 | 17/0.16 | 0.45 | 0.45 | 2.60 | 60.16 |
| 20 | 21/0.178 | 0.45 | 0.45 | 2.80 | 38.58 |
| 18 | 34/0.178 | 0.45 | 0.45 | 3.00 | 22.98 |
| 16 | 26/0.254 | 0.45 | 0.45 | 3.30 | 15.06 |
| 14 | 41/0.254 | 0.45 | 0.45 | 3.70 | 9.65 |
| 12 | 65/0.254 | 0.45 | 0.45 | 4.20 | 6.07 |
| 28 | 1/0.320 | 0.45 | 0.45 | 2.12 | 227.39 |
| 26 | 1/0.404 | 0.45 | 0.45 | 2.20 | 142.79 |
| 24 | 1/0.511 | 0.45 | 0.45 | 2.31 | 89.39 |
| 22 | 1/0.643 | 0.45 | 0.45 | 2.44 | 54.30 |
| 20 | 1/0.813 | 0.45 | 0.45 | 2.61 | 33.90 |
| 18 | 1/1.024 | 0.45 | 0.45 | 2.82 | 21.40 |
