Basic Info.
Function
Surfacing Electrode, Low Hydrogen Type Electrode, Hardfacing Electrode, High Efficient Iron Powder Electrode, Gravity Electrode, Moisture-Proof Electrode
Welding Power
DC
Colour
Grey (Accept Customized)
Transport Package
Carton+Pallet
Specification
2.5*350
Trademark
OEM
Origin
China
Production Capacity
1000000ton/Month
Product Description

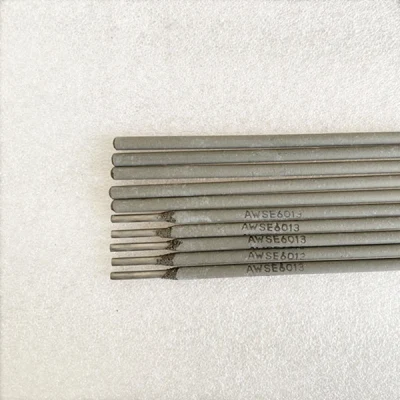

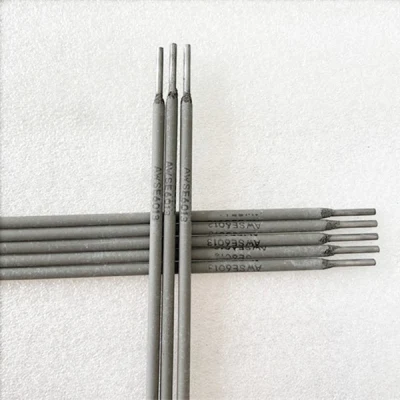

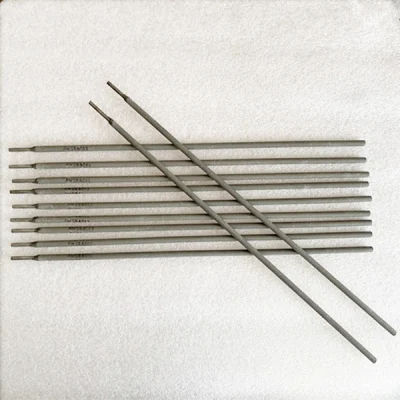

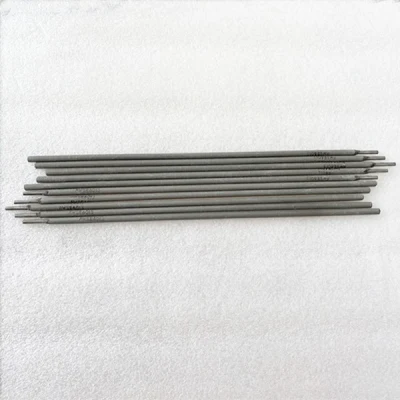

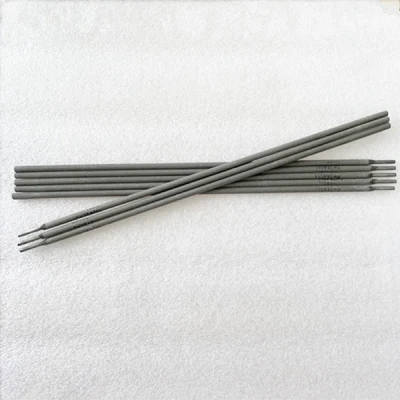

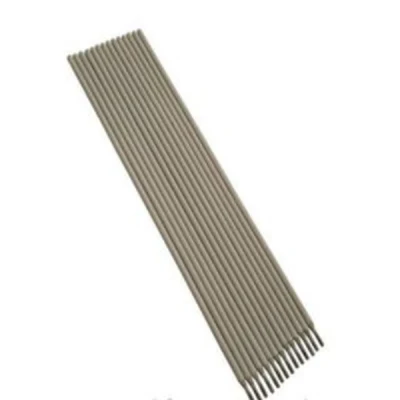

Acid Carbon Steel Electrodes
E6013 According with GB E4313
Introduction: E6013 is a kind of carbon steel electrode with titania type coating. AC/DC All-position welding.
lt has excellent welding performance, excellent operating performance, easy re-ignition, stable arc and smooth
welding appearance.
Applications: Suit for welding general low-carbon steel structures, especially suitable for welding small
size thin plates, intermittent welding with short weld heads and cosmetic welding that requires smooth
weld beads.
Chemical Composition of Deposited Metal(%)
MechanicalProperties of Deposited Metal
X-ray RadiographicInspection:IDegree
Reference Current(AC,DC)
Packing details:
In carton of 20kgs/net, consisting of 8 boxes x 2.5kgs for 2.5mm, & 4 boxes x5kgs for other sizes.With/
without pallets (Fumigation-free pallets) upon customer's request.
E6013 According with GB E4313
Introduction: E6013 is a kind of carbon steel electrode with titania type coating. AC/DC All-position welding.
lt has excellent welding performance, excellent operating performance, easy re-ignition, stable arc and smooth
welding appearance.
Applications: Suit for welding general low-carbon steel structures, especially suitable for welding small
size thin plates, intermittent welding with short weld heads and cosmetic welding that requires smooth
weld beads.
Chemical Composition of Deposited Metal(%)
| Chemical Composition | c | Mn | si | s | p |
| Guarantee Value | <0.12 | 0.3~0.6 | <0.35 | ≤0.035 | ≤0.040 |
MechanicalProperties of Deposited Metal
| Test ltem | Rm(MPa) | ReL(Mpa) | A(%) | KV2(J) | KV2(J) |
| Guarantee Value | ≥420 | ≥330 | ≥17 | -(normal temperature) | -(0ºC) |
| General Result | t460~540 | ≥340 | 18~26 | 50~80 | ≥47 |
X-ray RadiographicInspection:IDegree
Reference Current(AC,DC)
| Electrode Diameter(mm) | Φ2.0 | Φ2.5 | Φ3.2 | Φ4.0 | Φ5.0 |
| Welding Current(A) | 40~70 | 50~90 | 90~130 | 130~210 | 170~230 |
Packing details:
In carton of 20kgs/net, consisting of 8 boxes x 2.5kgs for 2.5mm, & 4 boxes x5kgs for other sizes.With/
without pallets (Fumigation-free pallets) upon customer's request.
