Product Description

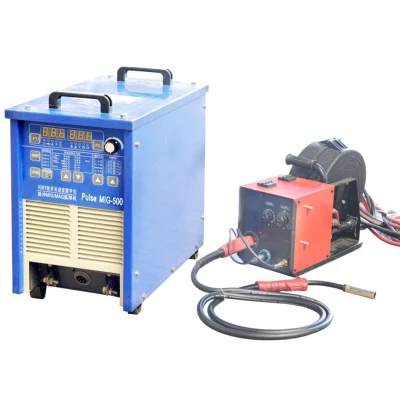

Pulse MIG Series Fully Digital Inverter Pulse Gas Shielded Welding Machine
Model: Pulse MIG-350, 500, 630 IGBT
| Pulse MIG Series Fully Digital Inverter Pulse Gas Shielded Welding Machine | ||
| Serial No. | item | description |
| 1 | product name | Pulse MIG Series Fully Digital Inverter Pulse Gas Shielded Welding Machine |
| 2 | model | Pulse MIG-350,500,630IGBT |
| 2 | CO2 gas shielded welding machine | yes |
| 3 | Function | MIG,MAG,manual arc and carbon arc air gouging welding |
| 4 | Application | be used for welding various materials, including carbon steel, alloy steel, stainless steel, copper and copper alloys, titanium alloys, and more. |
| 5 | Application industry | widely used in welding production in various industries such as machinery, automotive, motorcycle, shipbuilding, metallurgy, mining, construction, bridges, pipelines, boilers, pressure vessels, and others. |
| 6 | HS CODE | 8468200090 |
The Pulse MIG Series fully digital inverter pulse gas shielded welding machine is a high-performance digital pulse welding machine product.
This series of products utilizes high-quality high-power IGBT modules as the main switching components for variable frequency technology.
It employs high-frequency devices such as high-frequency transformers and fast recovery rectifier modules to achieve "AC-DC-AC-DC" conversion.
The machine features passive power factor correction, high power factor, excellent welding process characteristics, high dynamic response characteristics, precise current control, and automatic compensation and correction functions.
It also includes multiple protection functions such as phase loss, overvoltage, undervoltage, overcurrent, and overheating.
This machine is a high-end multi-functional soft-switching digital dual-pulse welding machine.
The Pulse MIG series inverter pulse MIG/MAG arc welding machine offers two welding modes: pulse and constant voltage, as well as manual arc and carbon arc air gouging welding modes.
The pulse welding mode can be used for welding carbon steel, stainless steel, aluminum and its alloys, copper and its alloys, and other non-ferrous metals. The constant voltage welding mode is suitable for carbon steel with argon enrichment and CO2 gas shielded welding.
It can be used for welding various materials, including carbon steel, alloy steel, stainless steel, copper and copper alloys, titanium alloys, and more.
It is widely used in welding production in various industries such as machinery, automotive, motorcycle, shipbuilding, metallurgy, mining, construction, bridges, pipelines, boilers, pressure vessels, and others.
Key Features:
1. Utilizes a fully digital control system for precise control and stable arc length during welding.
2. Employs a fully digital wire feeding control system for accurate and smooth wire feeding.
3. Includes an integrated welding expert database within the system, allowing for automatic and intelligent parameter combinations.
4. User-friendly interface with a unified adjustment method for easy operation.
5. Minimal spattering during welding, resulting in aesthetically pleasing weld seams.
6. Can store multiple welding programs for convenient retrieval, saving adjustment time.
7. Special four-step function suitable for welding metals with good thermal conductivity, ensuring perfect welding quality during arc initiation and termination.
8. Offers various interfaces for connection with welding robots and specialized welding machinery.
9. Soft-switch inverter technology to enhance overall reliability and energy efficiency.
10. Features single-pulse and double-pulse welding functions, providing an attractive fish-scale-like appearance on weld seams.
11. Provides multiple functions, including manual welding, gas shielded welding, and carbon arc air gouging.
12. High continuous load capacity, suitable for long-duration continuous welding.
Pulse MIG Series Fully Digital Inverter Pulse Gas Shielded Welding Machine
Specifications:
| item | model | ||
| Pulse MIG-350 | Pulse MIG-500 | Pulse MIG-630 | |
| Power Supply Voltage(V) | three phase 380V/50HZ | ||
| Rated Input Power(KVA) | 16.4 | 25.7 | 35.5 |
| Rated Input Current(A) | 25 | 39 | 54 |
| Rated Load Continuity Rate(%) | 60 | ||
| Output Current Regulation Range(A) | 25~350 | 25~500 | 25~630 |
| Output Voltage Regulation Range(V) | 14~40 | 14~50 | 14~50 |
| Output No-Load Voltage(V) | 96 | 98 | 98 |
| Welding Wire Diameter(mm) | φ0.8,φ1.0,φ1.2,φ1.6 | ||
| Gas Flow Rate(L/min) | 15~20 | ||
| Main Transformer Insulation Level | H grade | ||
| Output Reactor Insulation Level | B grade | ||
Warm Prompt: Different Model has Different Price.
Packaging:1 set in a wooden case.
Shipping: can be shipped by express,by air,by sea, by truck or by rail.
Our welding factory was established in 1978 and has long experience in manufacturing welding machine.
The quality is stable. No need to worry after sale service.
1.Can I purchase products which are not shown on the website?
Yes. Please send us your detailed requirements and we will try to help with your specific needs.
2.How can I place an order?
You can contact us by email (see contact page).
3.Where do you loading the goods?
Shanghai or Ningbo or Qingdao or Shenzhen port, etc.
4.How to make payment?
You can pay us by Paypal, L/C ,T/T and West Union,etc.
5.What is the type of our transportation?
As your requirement, by express, truck, rail, by sea or by air.
6.Can you offer the customers product sample?
Yes .After receiving your inquiry , we will arrange to send the sample within 3 days.
7.How do you pack the goods ?
According to customer's request.
8.What is your payment terms?
FOB Shenzhen, Guangzhou, Qingdao, Shanghai /Ningbo or other city in China , Or CIF Destination.
9.Can you also offer the service with OEM and ODM ?
Yes. We can offer OEM/ODM service. Please send us your brand information and specification.
10.How long is the warranty of your products ?
Generally, it's one-year-warranty. During the warranty period, we offer you free maintenance.
