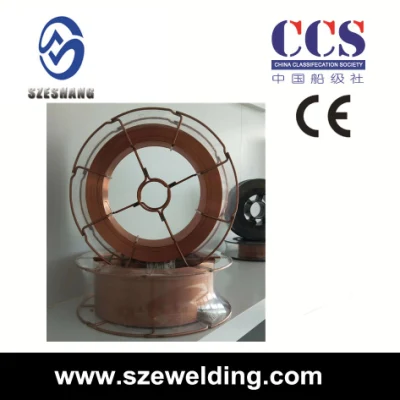

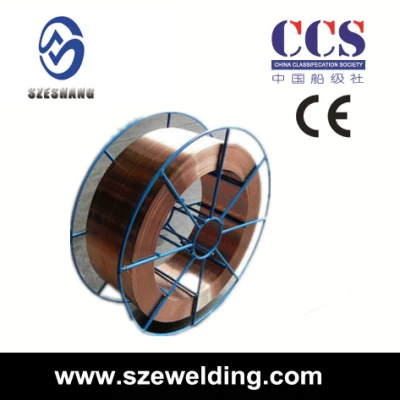

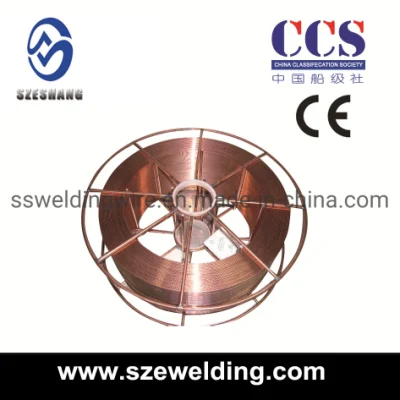

CO2 Gas Shielded MIG Welding Wire Er70s-6, BS300 Metal Spool

1. Welding Wire ER70S-6 -- Main Characteristics:
A. Low welding costs.
B. High productivity and low electricity consumption.
C. Easy to operate. All-position welding.
D. Very low hydrogen content in the weld and lower nitrogen content. Excellent crack-resistance.
E. Little deformation after welding.
F. Wide applicability. Suitable for welding thin, medium and thick plates.

2.

Welding Wire ER70S-6 -- Description:
ER70S-6 is a kind of mild steel copper coated welding wire, suitable for 100% CO2 and Argon& CO2 mixed gas protective welding with stable feasibility, good welding seams, less spatters and excellent welding process properties.

3. Welding Wire ER70S-6 -- Application:
Used to weld ship building steel(A, B, D, E, A36, D36, E36)and equivalent mild steel or 550Mpa grade mild alloy steel, such as container building, construction machine, railway construction, pressure vessel for semi-auto or automatic gas shielded welding.

4. Welding Wire ER70S-6 -- Conform with:
GB/T ER50-6 DIN SG2 JIS YGW12
AWS ER70S-6 BS A18 EN G3Si1




AWS A5.18 ER70S-6 CO2 mig welding wire

Quick details:

1. Type: CO2 wire/SG2 welding wire/ Mig wire/ GMAW wire

               Solid welding wire/ Gas shielded welding wire

2. Raw material: MIld steel/ Carbon steel/ Qingdao steel wire

3. Surface--------Copper coated / copper clad

4. Application : Co2 shielded welding, welding of mild steel material,

                         Ship/bridge welding, Arc welding etc

5.Dia:  0.8 0.9 1.0 1.2 1.6mm

6.Packing: 5Kg,15Kg 20kg spool, 100~350kg drum
Er70s-6 Welding Wire CO2 Copper Coated Wire with metal spool to Europe market
ER70S-6 welding wires is a mild steel copper coated welding wire suitable for 100% CO2 and Argon & CO2
mixed gas protective welding with stable feadability, good welding seams, less spatters, and excellent welding
process properties.

Application:
Used to welding high strength steel at 490 N/mm2 grade, low electricity current, usually for steel below Q275 and steel 15\20.
Wire Diameters available:
0.6mm(. 024"), 0.8mm(. 030"), 0.9mm(. 035"), 1.2mm(. 045"), 1.4mm(. 052"), 1.6mm(. 062")
Er70s-6 Welding Wire CO2 Copper Coated Wire with metal spool to Europe market

Gas shield welding wires mainly include varieties for carbon steel, weathering resistant steel,
heat resistant steel, low-temperature steel, high-strength steel, etc. The products have excellent
welding performance, mechanical performance, stable arc, small splashing, good weld formation
and high deposition efficiency, and are applicable to full-position welding. They are mainly applied
to steel structures, pressure vessels, containers, engineering machinery, shipbuilding, railways,
automobiles and motorcycles, electric power, etc.

7.Spool type: D270/D300 plastic spool, K300 Metal spool

8.Cer: ABS ISO CE GL BV NK LR CCS TUV DB ROHS

9.Confirm with:

GB/T ER50-6/   DIN SG2/     JIS YGW12

AWS ER70S-6/    BS A18/     EN G3Si1

Once a wire type is determined for your welding equipment, two additional pieces of information are needed in order to purchase this consumeable. The first is the wire diameter, which is usually given in thousands of an inch. The most common sizes for welding sheet metal are 0.35 and 0.45. The table below is commonly found in consumeable spec sheets and is worth copying for reference. It tells you how to set the controls on your equipment and which gas you need, depending on the welding process.

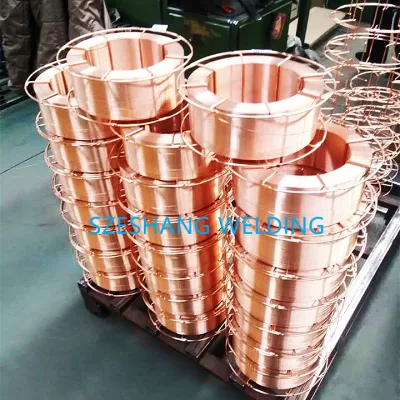

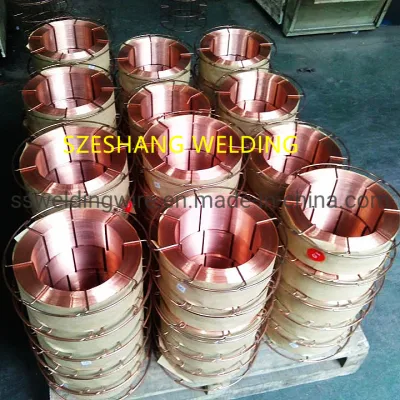

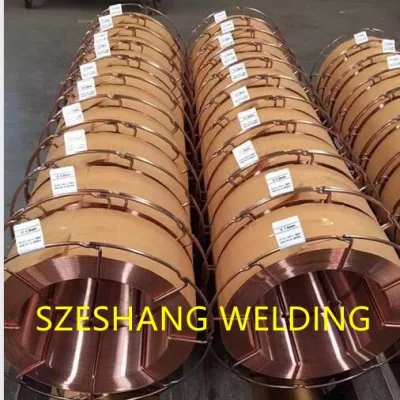

5kg,15kg,20kg/spool into carton,72 cartons/pallet;250kg/drum,4 drums/pallet.
